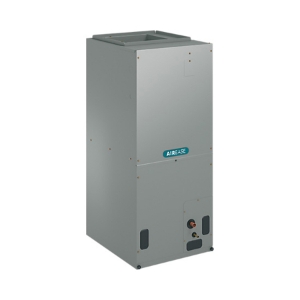

Ducane™ BCE7E30MA4 7-Series Multi Position Air Handler, 2.5 Ton Nominal, Power Source: 208 to 230V, 1 Phase, 60 Hz
| Brand | Ducane™ |
| MFR Part No | 1.913028 |
| TSCO Part Number | 1003350 |
- Features
- Specifications
- Documents
Warranty Length
- 10 Years Limited on Parts
Features
- Leadless blower motor features simple plug-in connections
- Blower speed change is easily accomplished by a simple wiring change
- Each blower is statically and dynamically balanced as an assembly before installation in the unit
- Deep, corrosion resistant plastic drain pans have dual pipe drains
- Control Box may be used with optional electric heat when single power supply is connected to multi-circuit electric het
- Field installs external to the unit cabinet on either side or top
- Tool-less access to filter area for quick and easy servicing
- Disposable frame type filter furnished and factory installed in rails in cabinet
Control Type:
Constant Torque
Dimensions:
51 in H x 21-1/4 in W
Filter Size:
20 x 20 x 1 in
Frequency Rating:
60 Hz
Liquid Line Size:
3/8 in
Material:
Galvanized Steel
Motor Type:
High Efficiency Blower
Nominal Capacity:
2.5 ton
Number of Phases:
1
Power Source:
208 to 230V 1 ph 60 Hz
Refrigerant Type:
R-410A
Series:
7-Series
Suction Line Size:
3/4 in
Type:
Multi Position
