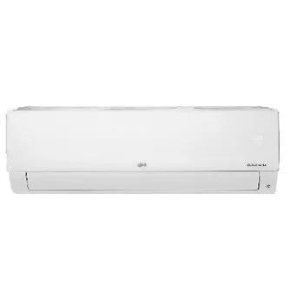

LG LSN090HSV5 HSV5 High Efficiency Mini Split Heat Pump Fan Coil Indoor Unit, 10400 Btu/hr Heating, 9000 Btu/hr Cooling, 208-230 V, 0.4 A, 1 Phase, 60 Hz, 23.5 SEER, 14.52 EER, R410A
Brand | LG |
MFR Part No | LSN090HSV5 |
TSCO Part Number | 403559 |
- Features
- Specifications
- Documents
Warranty Length
- Limited
Features
- The LSN090HSV5 has built in Wi-Fi, enabling the control of your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
- This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.
- The LSN090HSV5 can operate at volumes as low as 27 dB thanks to a combination of cutting edge components. LG utilizes a cross flow fan design that reduces noise levels by limiting the surface pressure of air flow.
- The LSN090HSV5 features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
- This LG unit feature a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit observes a set point of 64 degrees Fahrenheit and the fan operates at maximum speed for 30 minutes to quickly cool your zone.
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- The LSN090HSV5 indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter is the first line of defense against dust and bacteria.
- When the hot start function is enabled, the LSN090HSV5's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
Compressor Type:
Twin Rotary
Cooling Capacity:
9000 Btu/hr
EER Rating:
14.52
Flow Rate:
459/338/317/194 cfm
Heating Capacity:
10400 Btu/hr
HSPF Rating:
11.3
Maximum Piping Length:
9.8 in Min, 82 in Max
Mounting Type:
Wall
Nominal Capacity:
0.75 ton
Power Source:
208/230 VAC, 0.4 A, 1 ph, 60 Hz
Refrigerant Type:
R-410A
SEER Rating:
23.5
Sound Level:
39/33/23/19 dBA
Temperature Rating:
60 to 86 deg F
Type:
High Efficiency Mini Split
